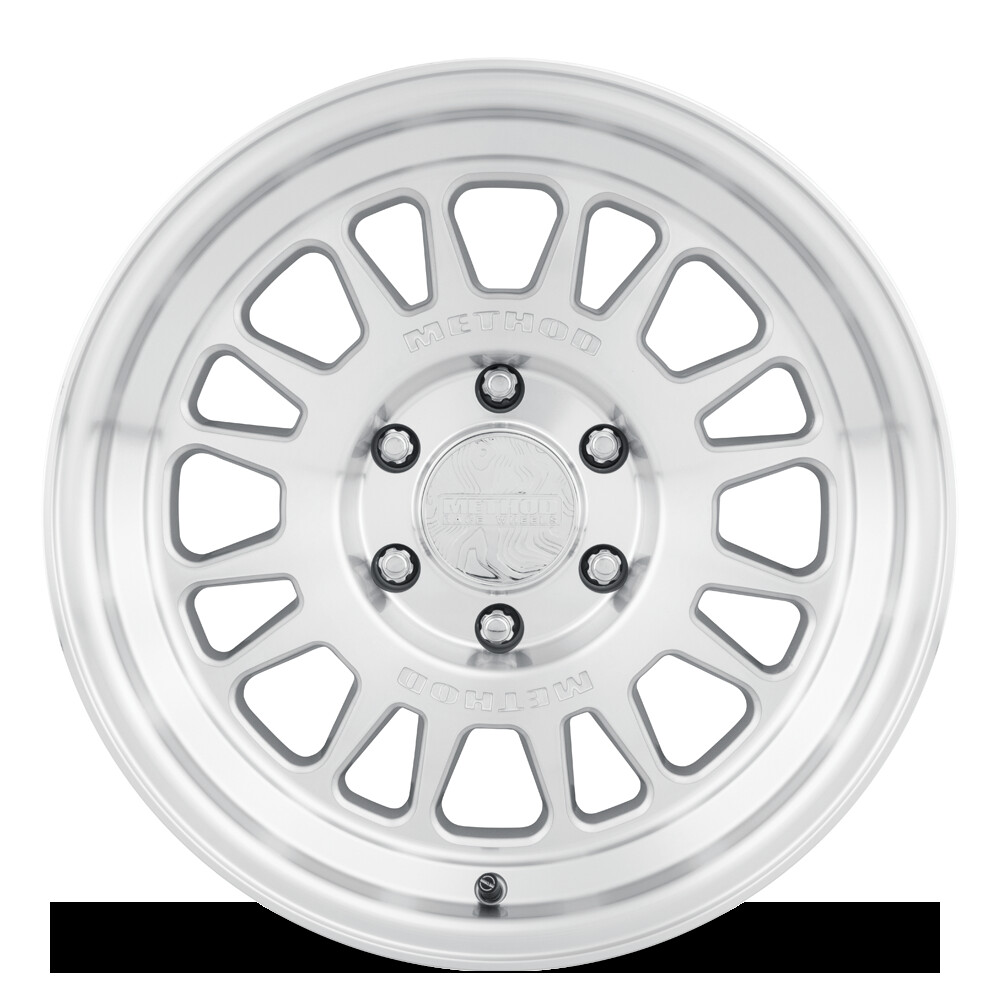

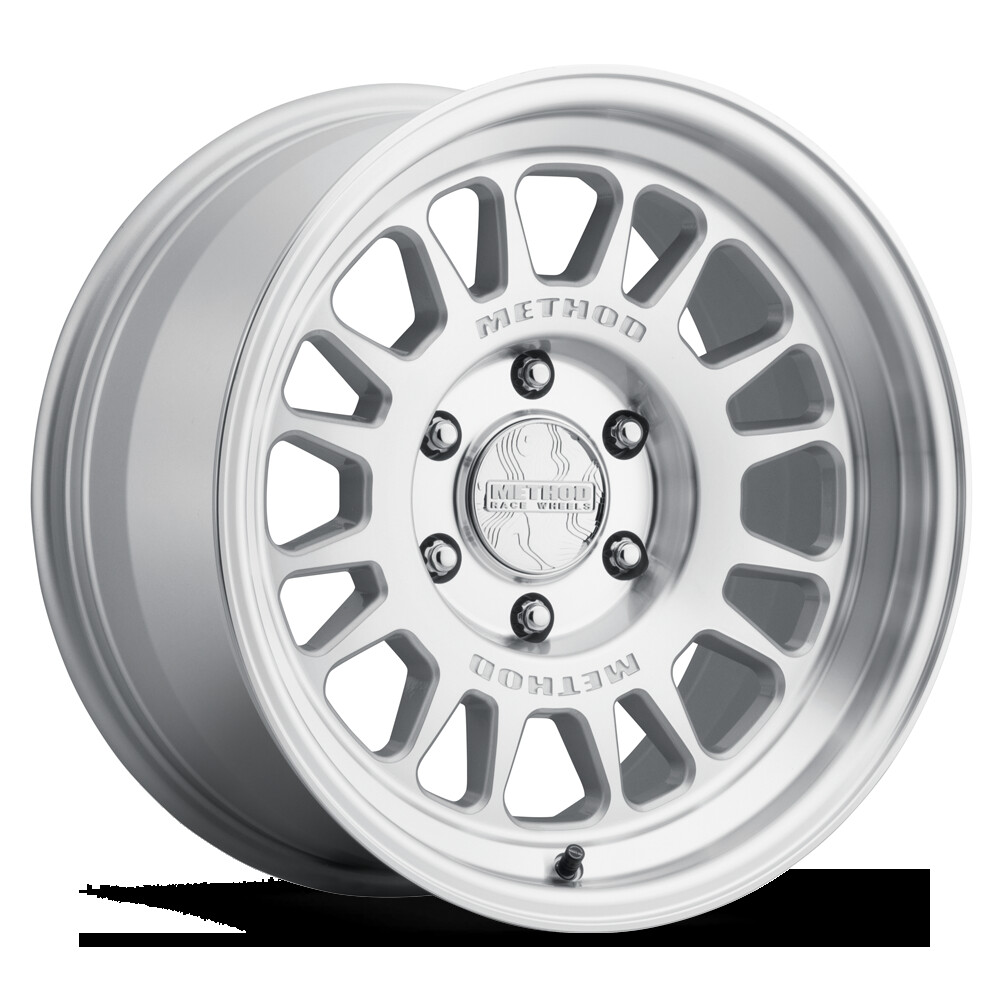

Taking design cues from the popular 412 UTV Bead Grip series wheel, our all new 318 Standard Series expands the look to the light truck market.

With clean lines and our popular Topo center cap, this wheel will certainly make any vehicle stand out from the crowd. Available in 5, 6, and 8 lug fitments.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Tough multi-spoke design with debossed Method logo
• Snap-in Topo center cap with embossed Method logo
• Push through Topo center cap with embossed Method logo for 8 lug applications
• Hub centric fitments for common applications
• Industry’s best lifetime structural warranty
• Strong 1900 lbs. to 3640 lbs. load ratings

Details:

• Series: STREET (3XX)
• Model: MR318
• Wheel Diameter Inch: 17 Inch
• Wheel Width Inch: 8.5 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 25 mm
• Backside Spacing Inch: 5.7 Inch
• Hub Bore mm: 106.25 mm
• Wheel Weight LBS: 29.14 LBS
• Max Load LBS: 2650 LBS
• Color/Finish: Machined - Clear Coat
• Application: 17x8.5, 6x5.5, 25 OS, 2650 lbs
• Cap Part: CP-TOPO107S-C
• Cap Type: Snap In
• Hub Centric Yes/No: Yes
• Hub Centric Ring PN: MH-ZH-043
• Hub Ring Bore mm: 78.3 mm
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 175 mm
• Spoke Depth At 90mm: 4
• Spoke Depth At 100mm: 19
• Spoke Depth At 120mm: 30
• Spoke Depth At 160mm: 32
• Inner Wheel Radius At 50mm: 210
• Inner Wheel Radius: 200
• Cap Bore mm: 103.36 mm
• Cap Clearance Height mm First Obstruction: 20.73
• Cap Clearance Height mm End Of Cap: 38.6
• Lip Size mm: 36 mm
• Lip Size Inch: 1.42 Inch
• CBM: 0.0766168399999998
