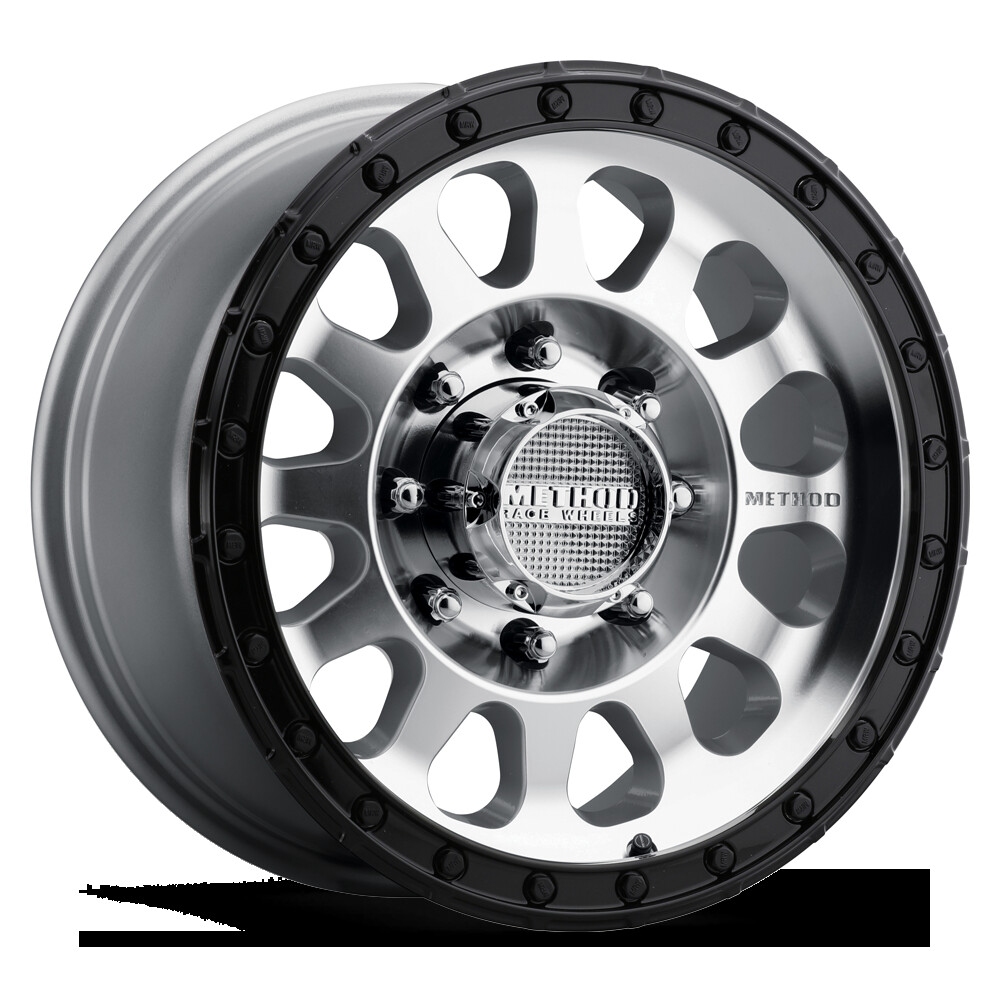

The 315 Standard wheel features a rugged 12 spoke design with a debossed Method logo. It is essentially the street legal version of our 103.

The lip undercut simulates a true beadlock wheel with extra pockets machined out around the edge for further weight savings. It boasts a strong load rating of 2,500 - 3,640 LBS.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Firm 12 spoke design with debossed Method logo
• Machined pockets in outer lip for weight savings
• Replaceable Mrw lip bolts with optional colors available
• Bolt-on center cap with embossed Method logo
• Push through cap with embossed Method logo for 8 lug applications
• Hub centric fitments for common applications
• Industry’s best lifetime structural warranty

Details:

• Series: STREET (3XX)
• Model: MR315
• Wheel Diameter Inch: 17 Inch
• Wheel Width Inch: 9 Inch
• Bolt Pattern: 8x6.5
• Bolt Hole: 8
• Bolt Diameter: 6.5
• Offset mm: -12 mm
• Backside Spacing Inch: 4.5 Inch
• Hub Bore mm: 130.81 mm
• Wheel Weight LBS: 29.01 LBS
• Max Load LBS: 3640 LBS
• Color/Finish: Machined - Gloss Black Lip
• Application: 17x9, 8x6.5, -12 OS, 3640 lbs
• Cap Part: CP-T078B140-1-C
• Cap Type: Push Thru
• Replacement Cap O-Ring: OR-049
• Accessory Bolt PN: BT-BOLT BLACK
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 200 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 0
• Spoke Depth At 120mm: 35.4
• Spoke Depth At 160mm: 42.2
• Inner Wheel Radius At 50mm: 207.7
• Inner Wheel Radius: 203.3
• Cap Bore mm: 123.1 mm
• Cap Clearance Height mm First Obstruction: 92
• Cap Clearance Height mm End Of Cap: 92
• Lip Size mm: 69 mm
• Lip Size Inch: 2.72 Inch
• CBM: 0.0834859359999998
