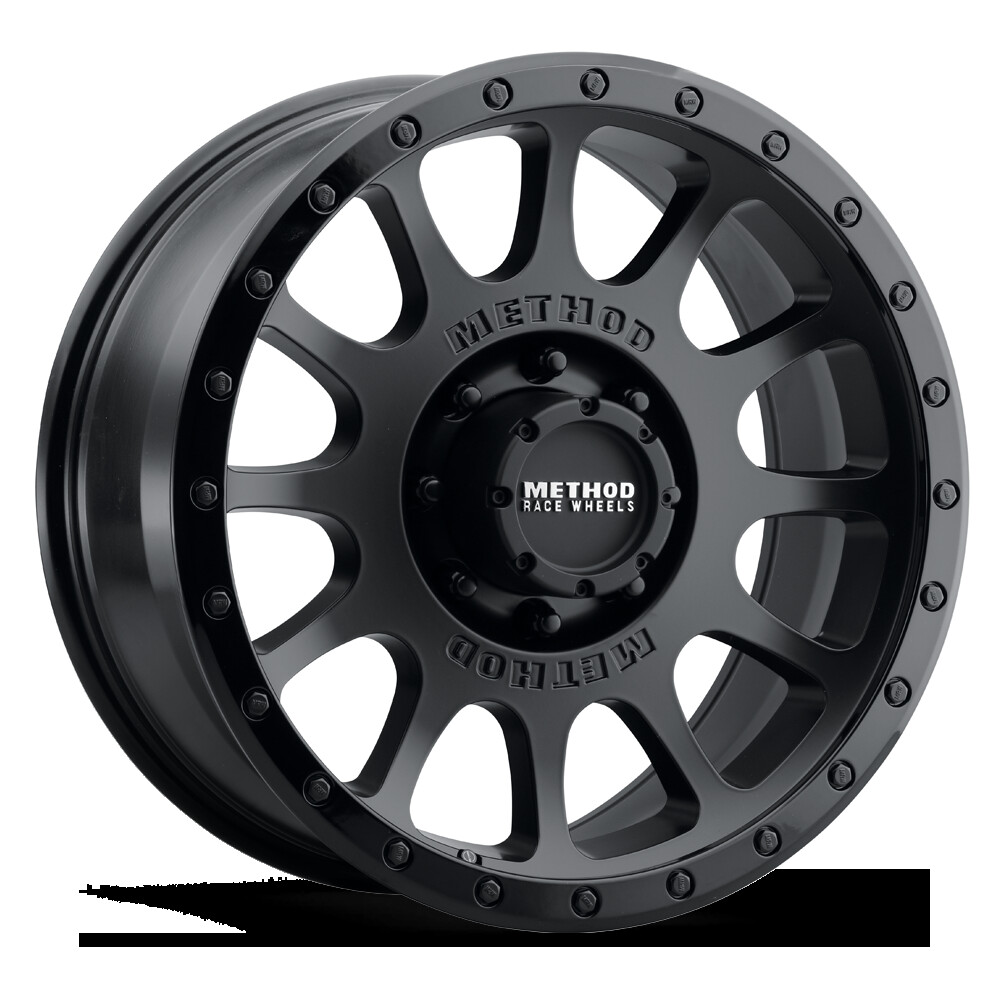

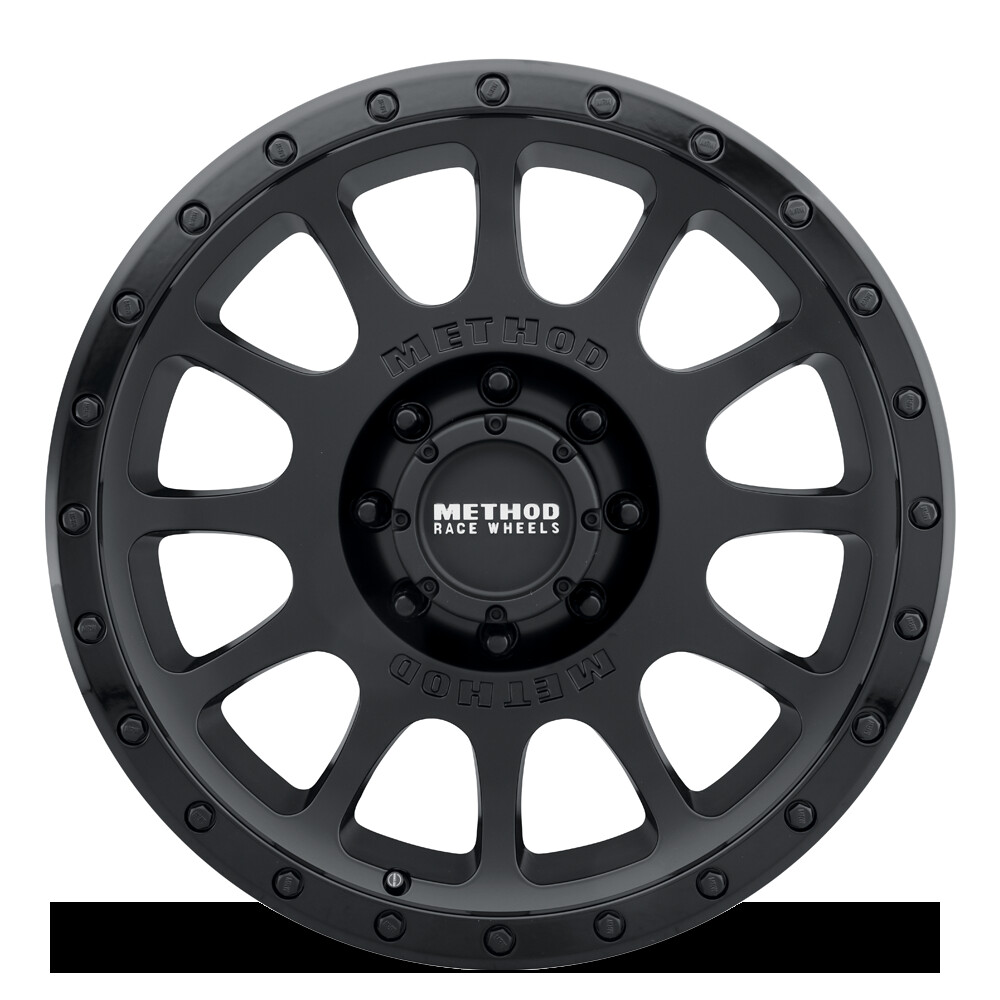

The 305 NV wheel features an iconic 12 window design with a debossed Method logo on either side of the center cap. The lip undercut simulates a true beadlock wheel and has replaceable lip bolts with optional colors available.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Iconic 12 window design with debossed Method logos
• Street-Loc V.1 lip with undercut simulates true beadlock wheel
• Replaceable Mrw lip bolts with optional colors available
• Push through center cap with embossed Method logo
• Flush cap appearance options available
• Industry’s best lifetime structural warranty

Details:

• Series: STREET (3XX)
• Model: MR305 NV
• Wheel Diameter Inch: 20 Inch
• Wheel Width Inch: 9 Inch
• Bolt Pattern: 8x170
• Bolt Hole: 8
• Bolt Diameter: 170
• Offset mm: 18 mm
• Backside Spacing Inch: 5.75 Inch
• Hub Bore mm: 130.81 mm
• Wheel Weight LBS: 37.85 LBS
• Max Load LBS: 3640 LBS
• Color/Finish: Matte Black - Gloss Black Lip
• Application: 20x9, 8x170, 18 OS, 3640 lbs
• Cap Part: CP-1524B140H106-B
• Cap Type: Push Thru
• Replacement Cap O-Ring: OR-049
• Accessory Bolt PN: BT-BOLT BLACK
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 200 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 0
• Spoke Depth At 120mm: 21.2
• Spoke Depth At 160mm: 28.9
• Inner Wheel Radius At 50mm: 243.4
• Inner Wheel Radius: 234.6
• Cap Bore mm: 128 mm
• Cap Clearance Height mm First Obstruction: 97.7
• Cap Clearance Height mm End Of Cap: 107
• Lip Size mm: 36 mm
• Lip Size Inch: 1.42 Inch
• CBM: 0.1040819
