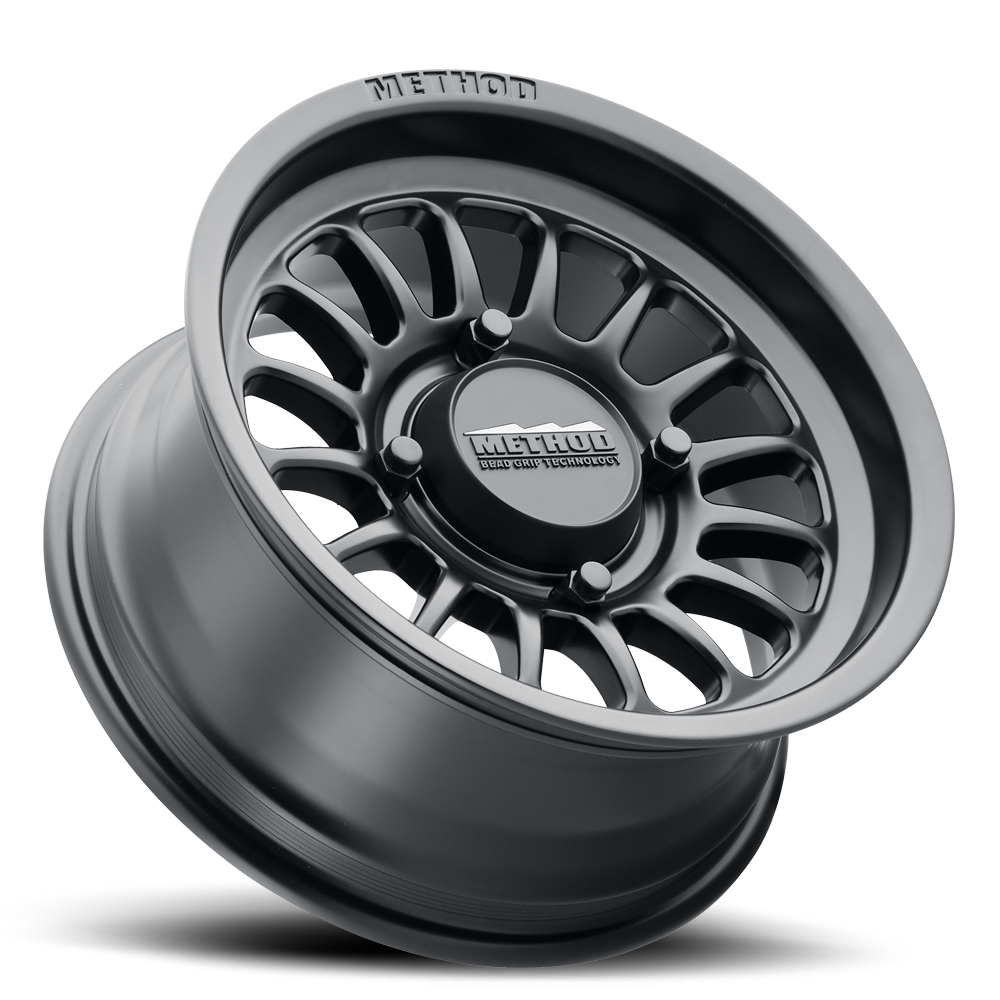

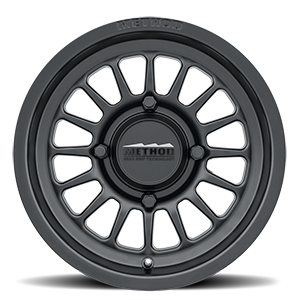

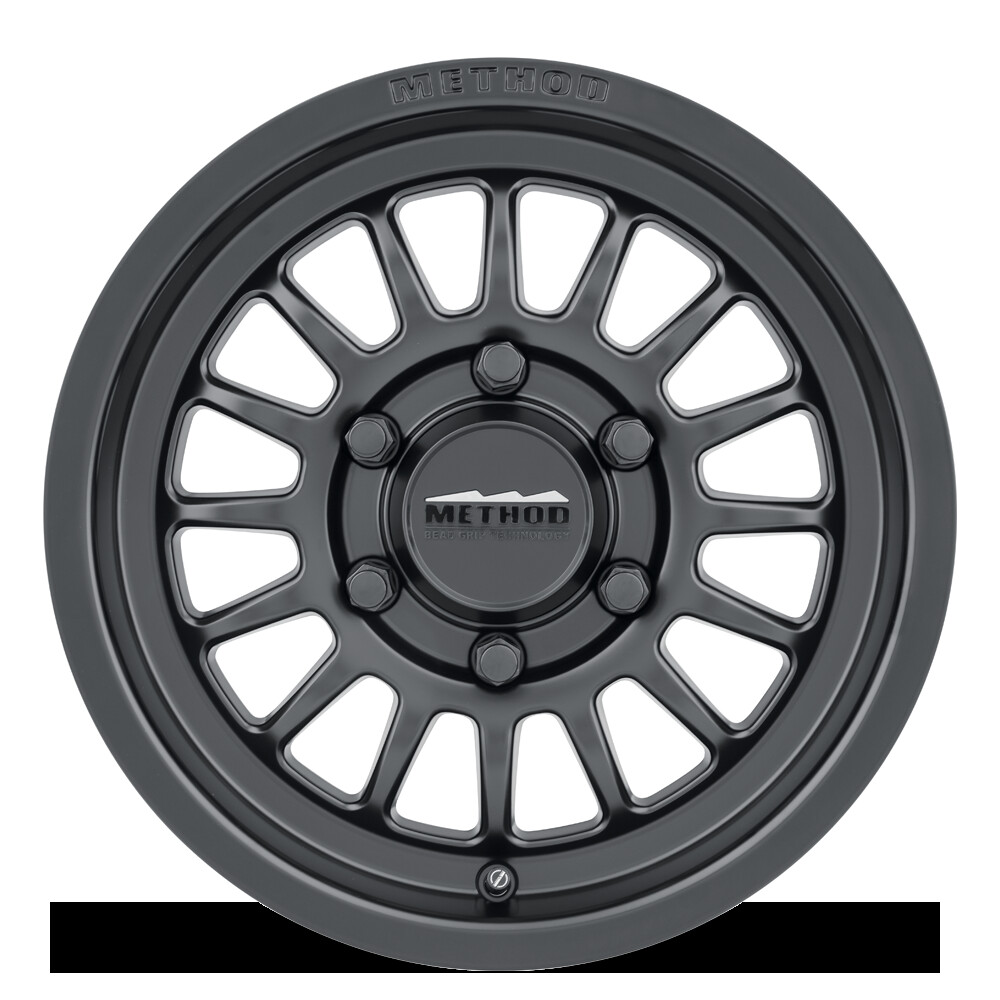

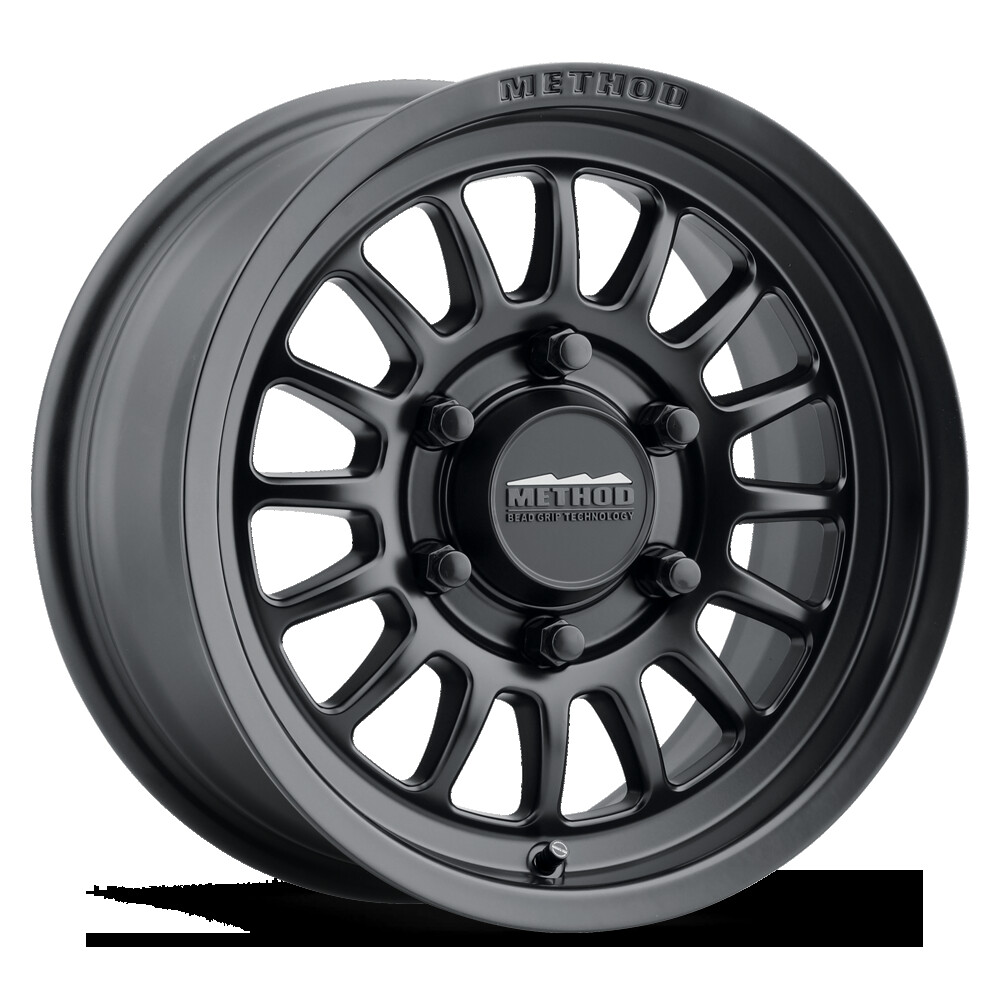

The 411 Bead Grip UTV wheel's 16 spoke rally raid inspired design and debossed Method logo on the outer lip give the wheel a clean, yet rugged look.

The patented Bead Grip Technology utilizes integrated grooves found on both the inner and outer bead seat to engage the tire bead for a stronger hold under extreme side load and lower air pressures.

Features and Benefits:

• Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
• Solid A356 aluminum with T6 heat treatment construction
• Rally inspired multi-spoke design with debossed Method logo on outer lip
• Aggressive safety hump on bead seats further prevents de-beading
• Reinforced inner lip taken from Mrw race wheel increases strength
• Snap-in center cap with embossed Method Bead Grip logo

Details:

• Series: UTV (4XX)
• Model: MR411 Bead Grip
• Wheel Diameter Inch: 15 Inch
• Wheel Width Inch: 7 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 38 mm
• Backside Spacing Inch: 5.5 Inch
• ATV Offset B+F: 5+2
• Hub Bore mm: 78.3 mm
• Wheel Weight LBS: 15.6528206151263 LBS
• Max Load LBS: 1600 LBS
• Color/Finish: Matte Black
• Application: 15x7, 6x5.5, 38 OS, 1600 lbs
• Cap Part: CP-T080K104
• Cap Type: Snap In
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 14.1 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 180 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 7
• Spoke Depth At 120mm: 13.7
• Spoke Depth At 160mm: 6.9
• Inner Wheel Radius At 50mm: 170
• Inner Wheel Radius: 167
• Cap Bore mm: 78.3 mm
• Cap Clearance Height mm First Obstruction: 40
• Cap Clearance Height mm End Of Cap: 40
• Lip Size mm: 40 mm
• Lip Size Inch: 1.57 Inch
• CBM: 0.051529
